Established in 1994, we deliver tailored solutions to small businesses and large industrial companies.
Established in 1994, we deliver tailored solutions to small businesses and large industrial companies.
rolls production and service, on-site service, lubrication systems, pulping technology, winding shafts and manipulation, showering systems, edge trimming devices, nozzles, rotary joint spares and many more ...

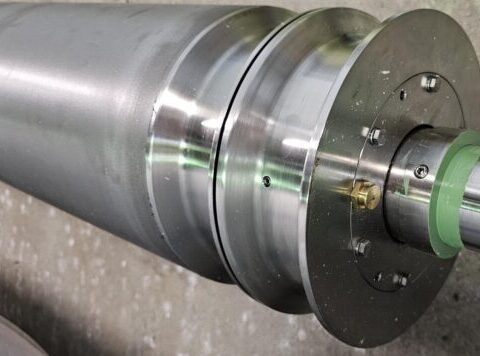

wide range of guide rolls, stender rolls, drive rolls, transfer rolls, also with different surface treatments and accessories. We also offer high precision rolls as an option for carbon rolls.
Suction breast rolls, Forming suction rolls, Suction couch rolls, Pick-up suction rolls, Central suction rolls, Felt suction rolls, Suction press rolls, up to 2500 m/min, diameters up to 2200 mm, Face length up to 12000 mm. Suction roll shells made of premium Duplex stainless steel, with gun-drilled holes.
high quality press rolls, up to 500 kN/m, diameters up to 2000 mm, face lengths up to 12,000 mm, all functional coatings including grooving and blind drilling, up to max. 80 tonnes. All surface treatments (flex grooving)

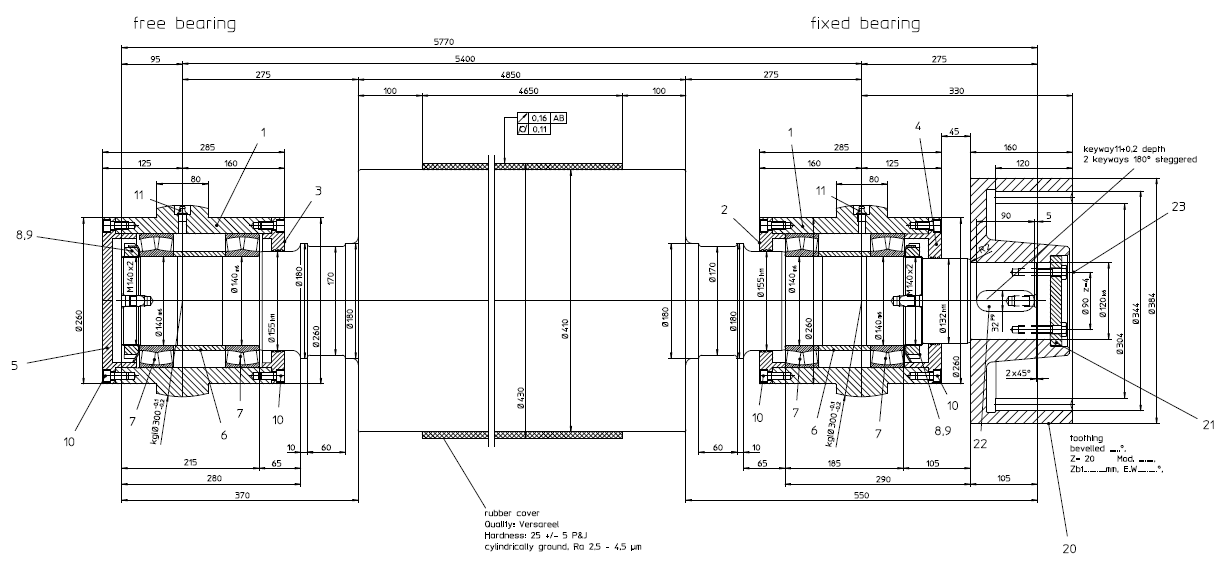

efficient paper production relies on quality reel spools. Polyurethane-coated reel spools are the best option for smooth, durable performance.

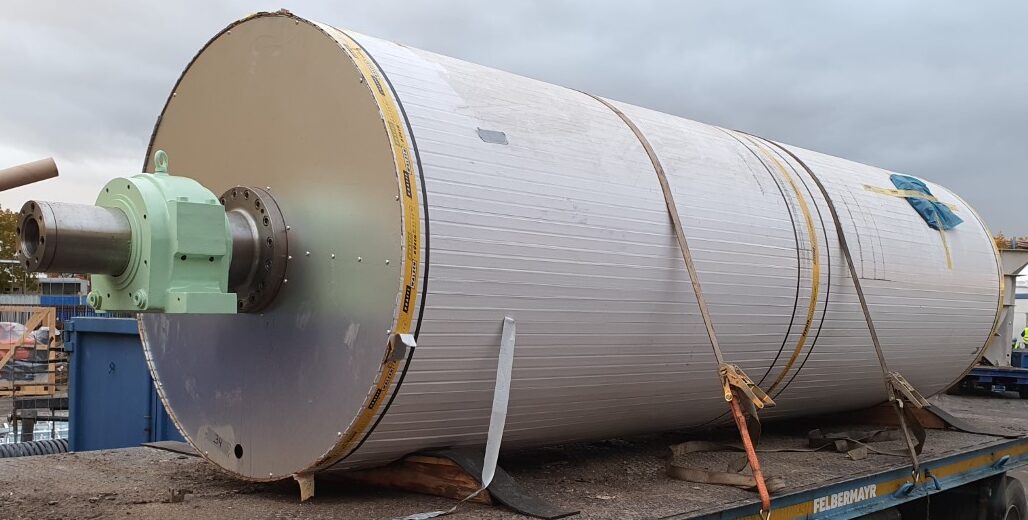

from vacrolls to dryers and clupaks. Cast iron or state of the art steel cylinders, welded or screwed, manufactured with excellent release and long life coatings. Accessories such as bearings, housings, turbulence bars, steam and condensate equipment available on request.

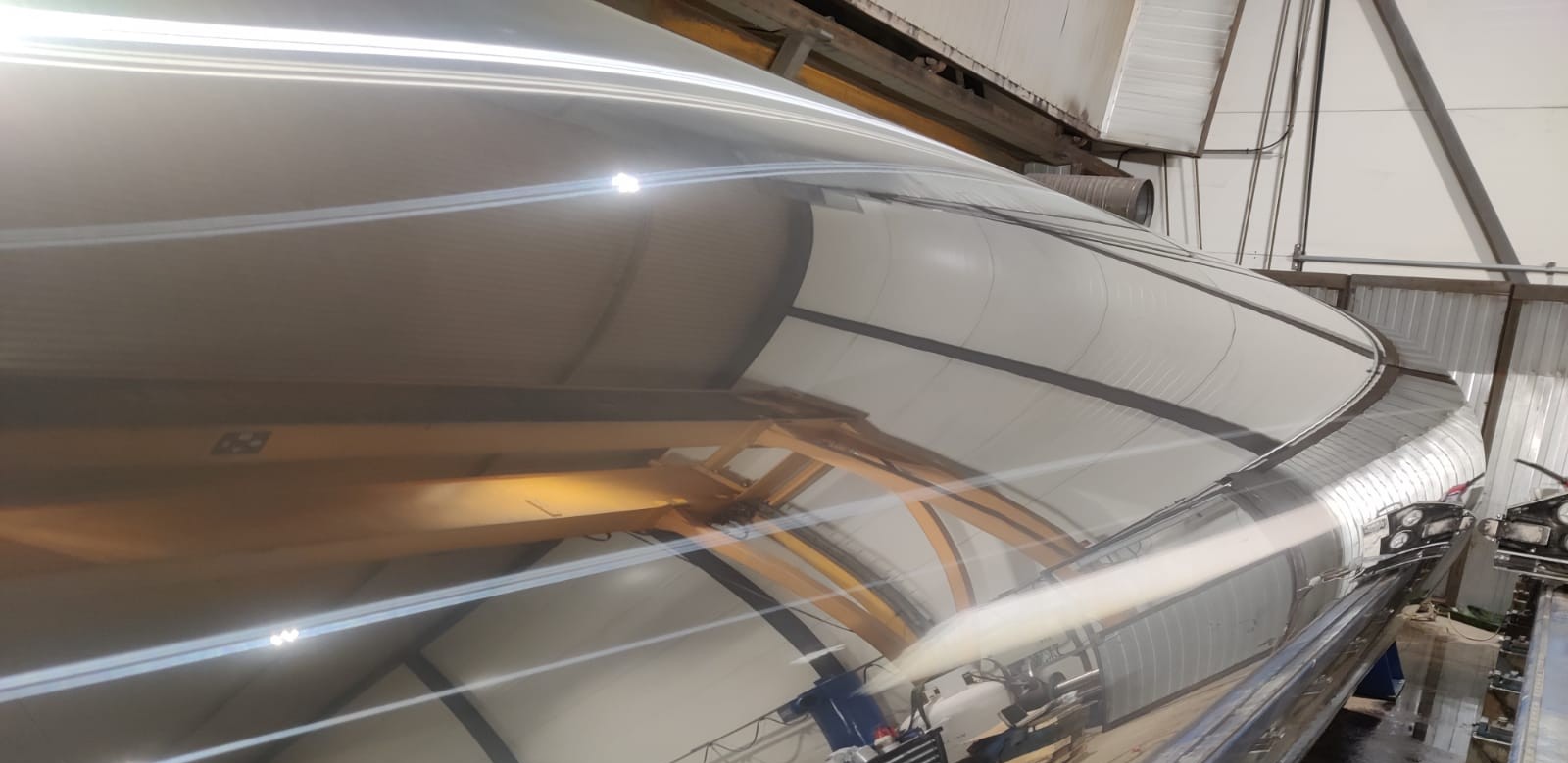

dryer cylinders for clupak units. Hard coatings for long durability with excelent anti-corrosion properties and heat transfer. Hard smooth mirror - finished surface.
grooved and drilled cylinders for use in the individual felt dryer section of high speed paper machines. We offer new Vac rolls and also on-site modification of present dryer cylinders by driling and instalation of separator chamber.

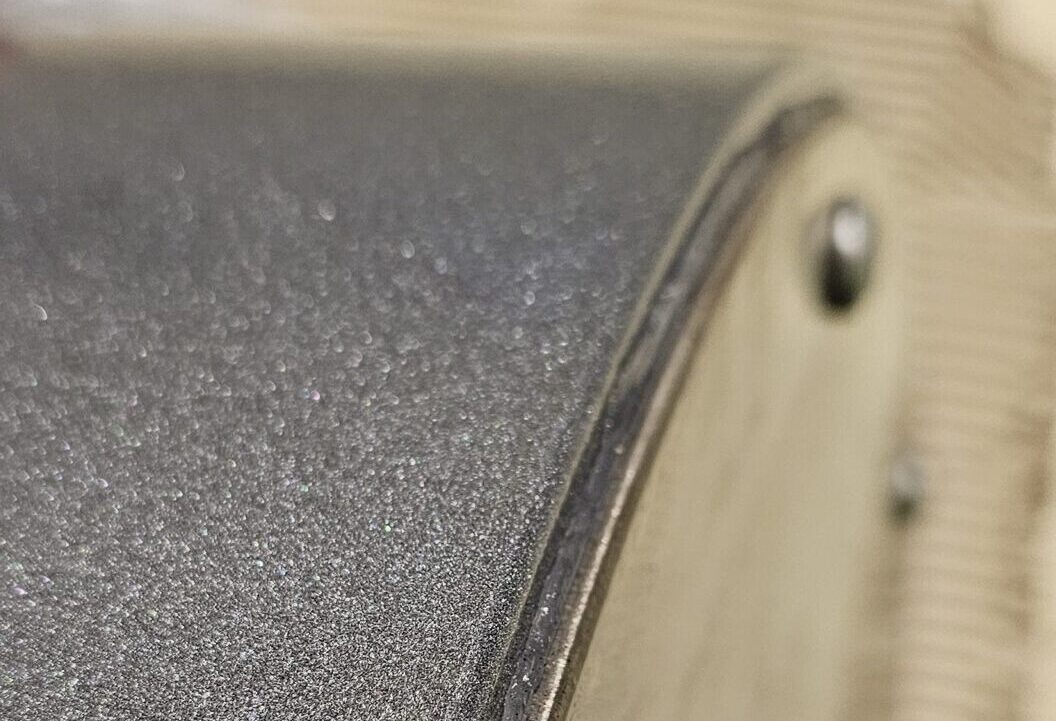

from breast roll to guide rolls and drive rolls. We deliver coatings, with excelent durability, release and corrosion protection in wet enviroment. We specialize in polyurethane and ceramic coatings.

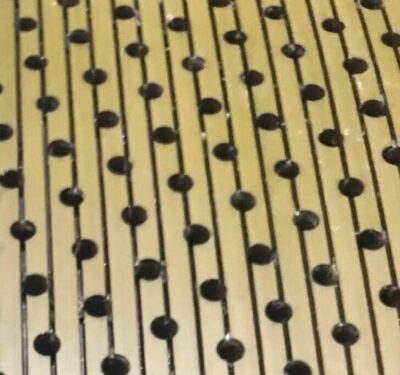

hard coatings for suction pick-up rolls, coach rolls and press rolls, rubber covers for press rolls and suction press rolls.
high durable coatings with outstanding realease and anticorrosive properties

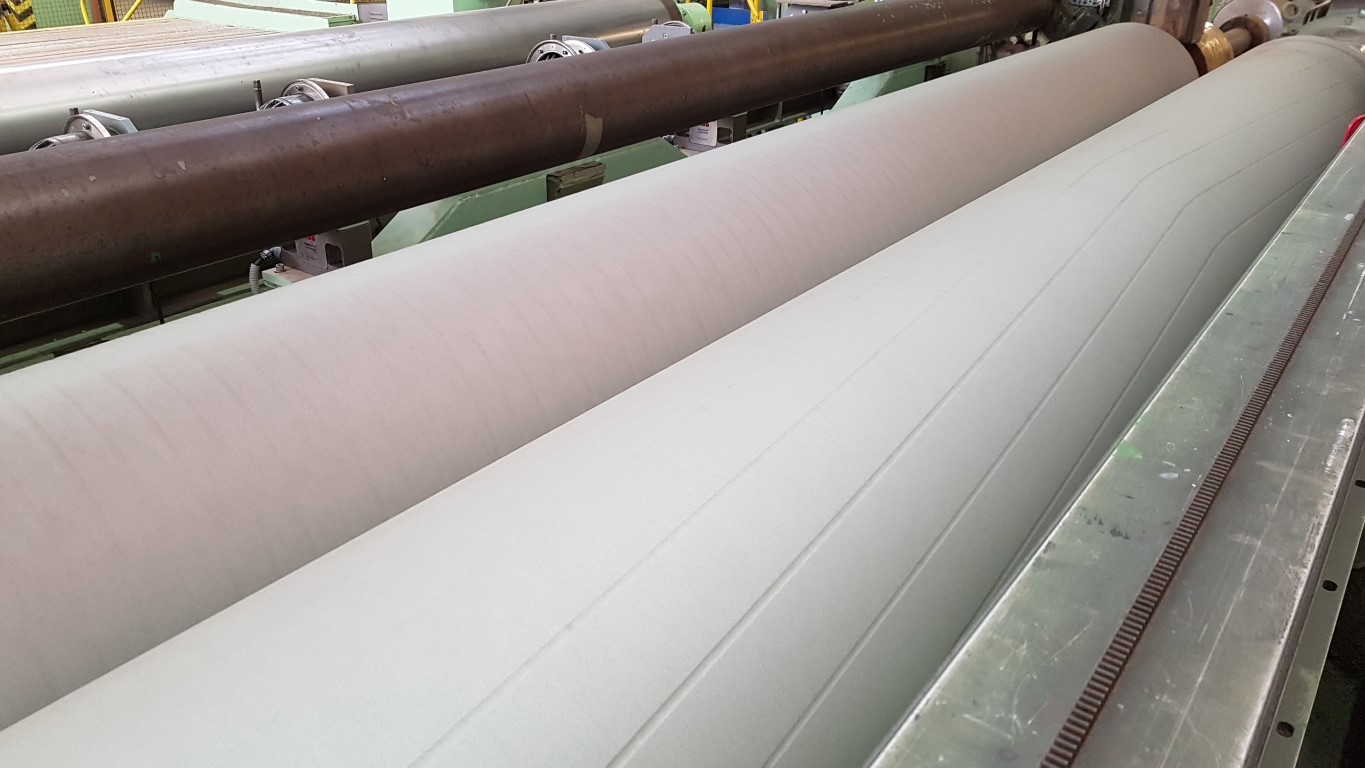

high durable pope reel coatings, reel spools coating and traction coatings for winder traction rolls
roll visual inspection, wall thickness measurement, coating thickness measurement, grinding, balancing, non-destructive testing, re-coating, journal replacement, bearing and other accessories reconditioning or replacement

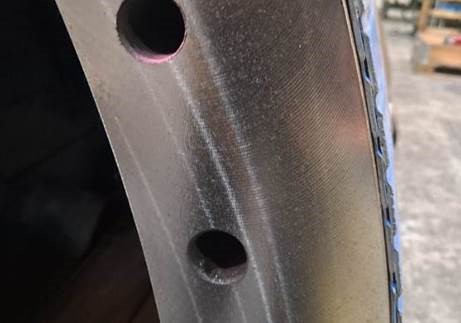

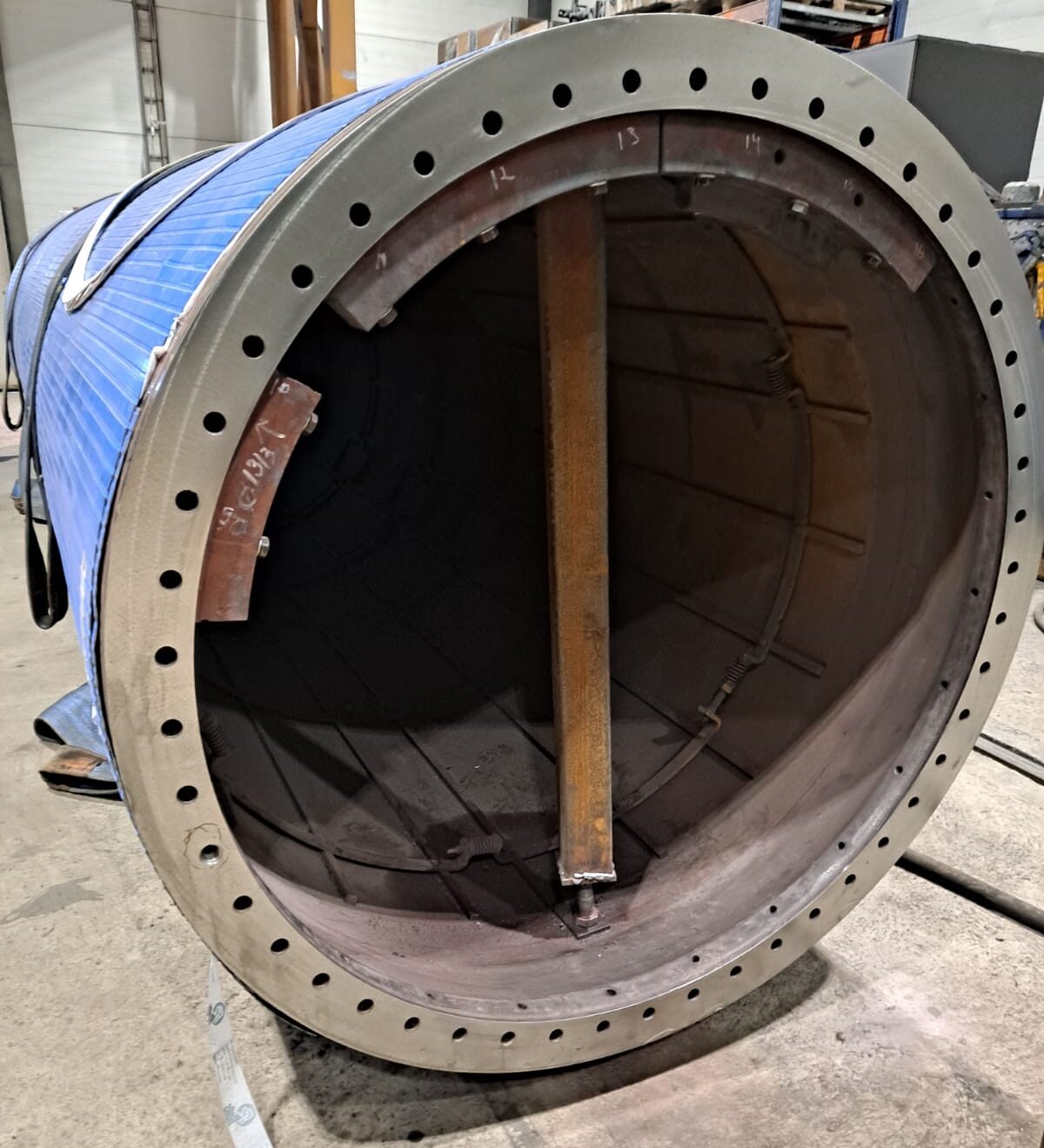

same as standard reconditioning + bottom and journal replacement, journal repair and machining, sealing exchange, sealing surface machining, inner parts repair or replacement, manhole cover and sealing replacement, shell spot damage repair, pressure vesel test incl. certificate

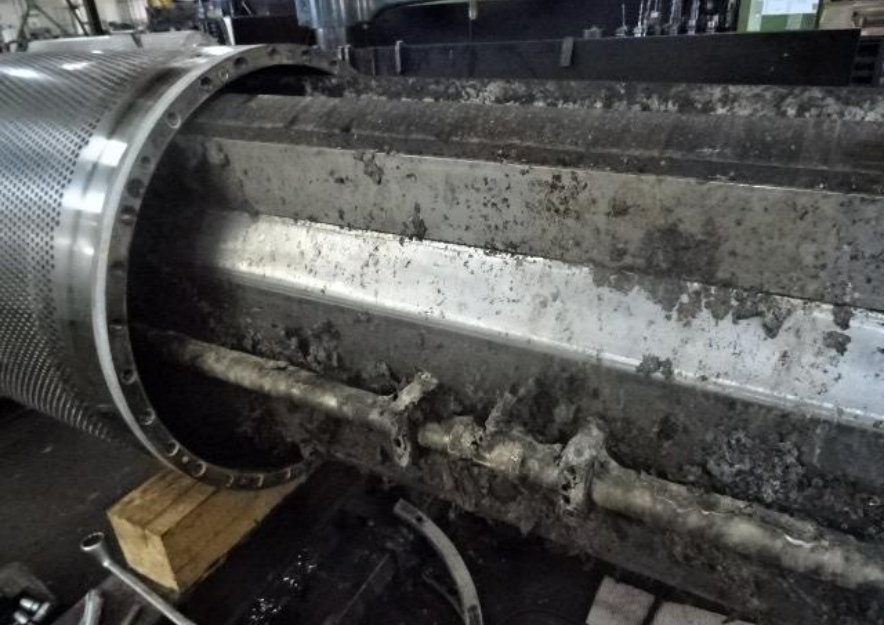

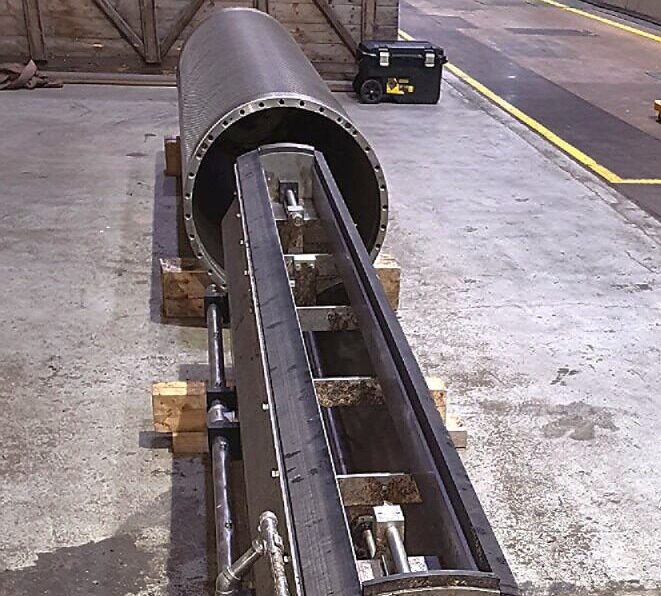

suction roll inspection including comprehensive inspection report, dynamic balancing, cleaning, roll shell and cover grinding, cover regrooving, sealing strips and air tubes relacement, pilot bearing and bearings replacement, journal replacement, internal shell surface reconditioning, new shell manufacture from high quality Duplex stainless steel, optionaly with polyurethane cover incl. drilling patttern and grooving. Upgrade with smart technology for bearings and sealing strips condition monitoring
grinding of yankee dryers, dryers, with subsequent sandblasting and coating, traction rolls coating poolishing of clupacks, spot repairs and more

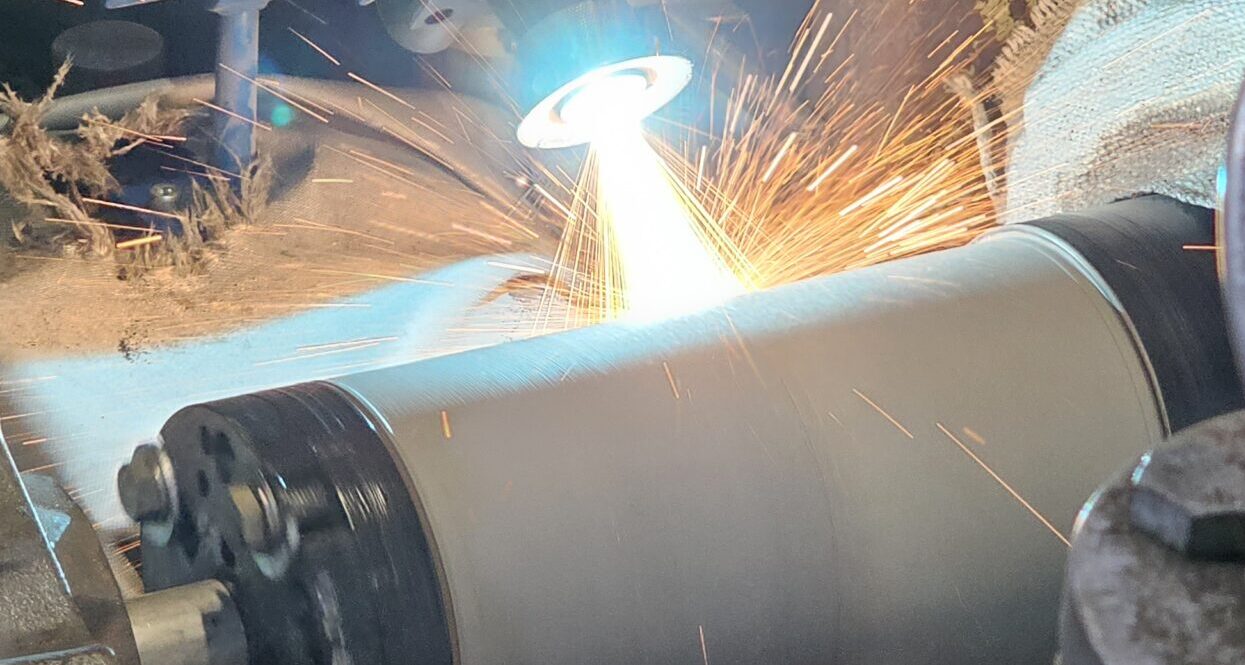

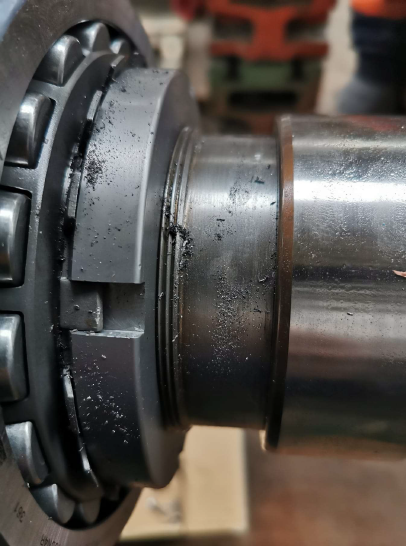

shaft machining to even diameter, metal spraying or sleeve instalation, final machining and grinding, key nut machining

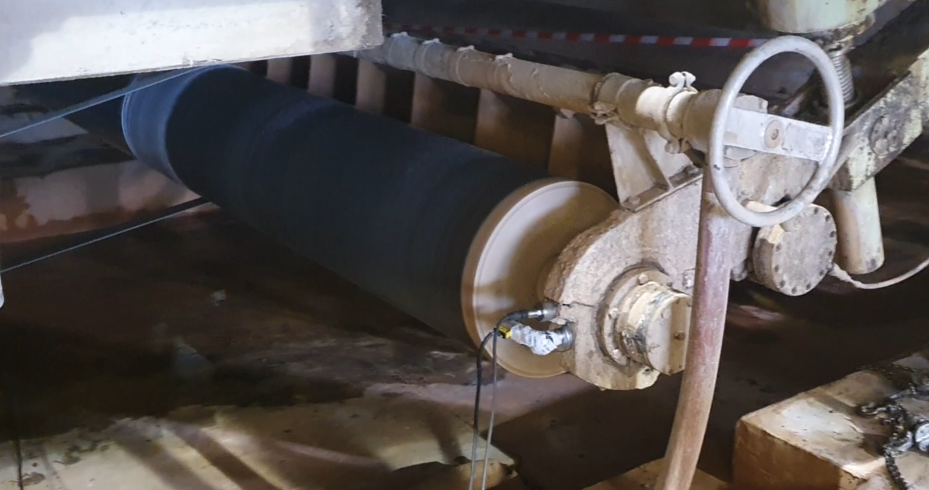

balancing of lead rolls, dryer cylinders and others in PM or outside

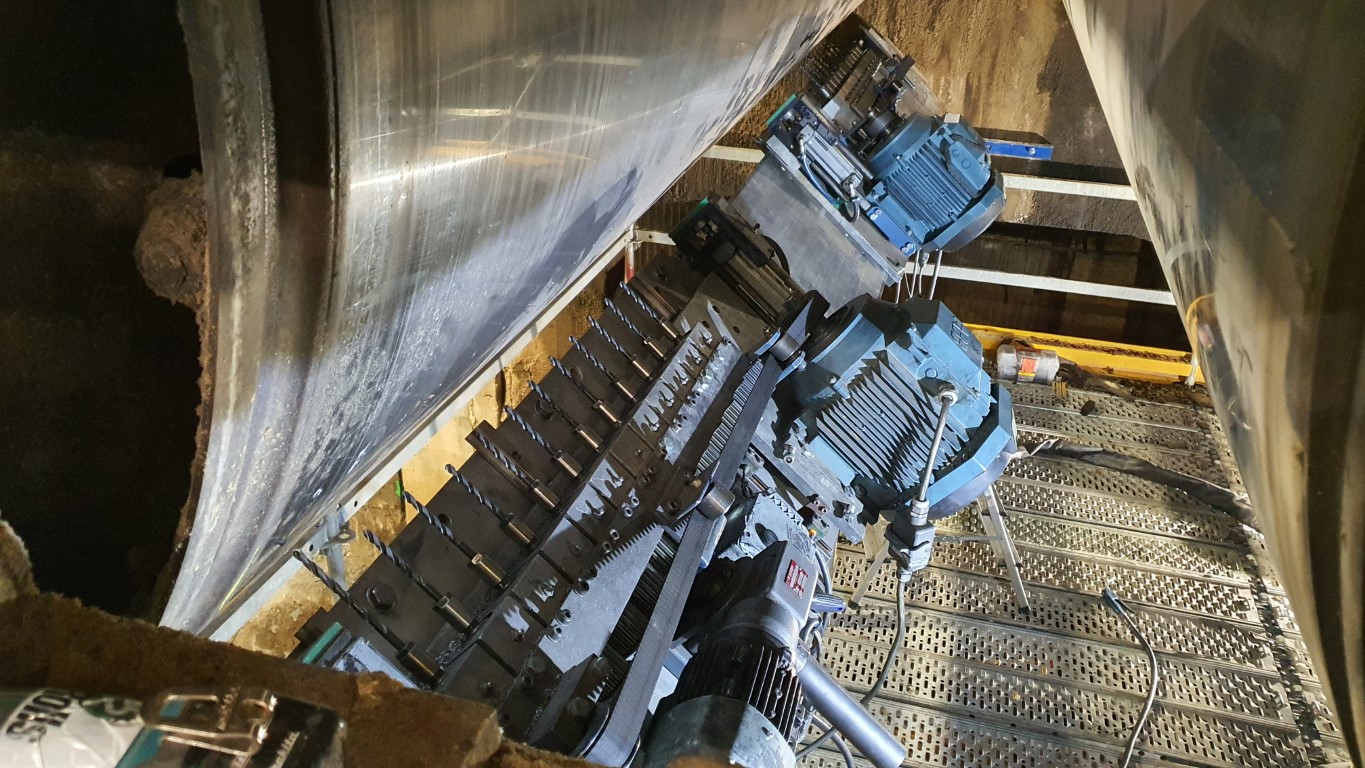

on-site modification of present dryer cylinders by shell driling and grinding and additional instalation of separator chamber
dryer journal replacement, bearing exchange, sealing surfaces renewal and many others
large variety of nozzle types and sizes for customers various applications. Flat jet nozzles, needle jet nozzles, mono nozzles made of stainless steel also with ceramic insert for long lasting beam quality

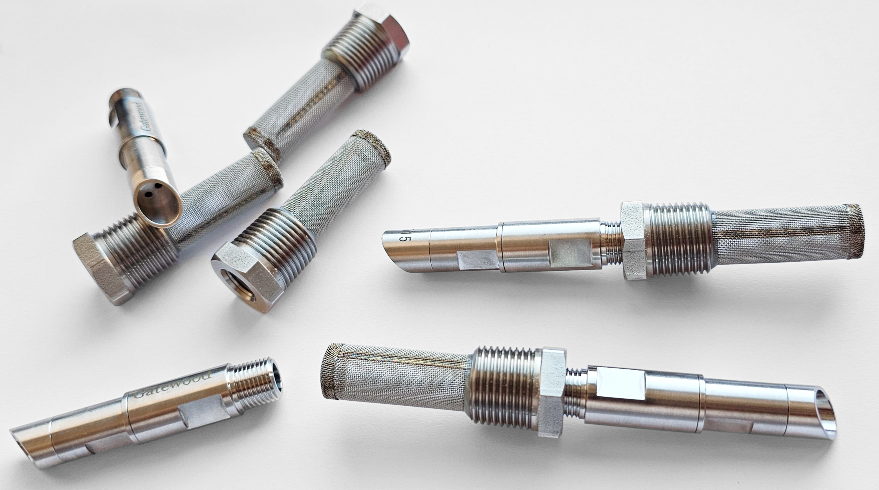

we are pleased to offer high quality trim nozzles and accessories from Gatewood. Trim nozzle is a long-lasting, precision, high pressure nozzle with an extremely hard ceramic tip. This tough, high quality nozzle was specially designed by Gatewood at the request of several large paper mills in need of a nozzle to withstand high pressure while maintaining the highest quality stream over long periods of time. Trimm nozzles are available in single stream, double stream and double parallel stream. Nozzles can be equiped with drip shielding and filter screen

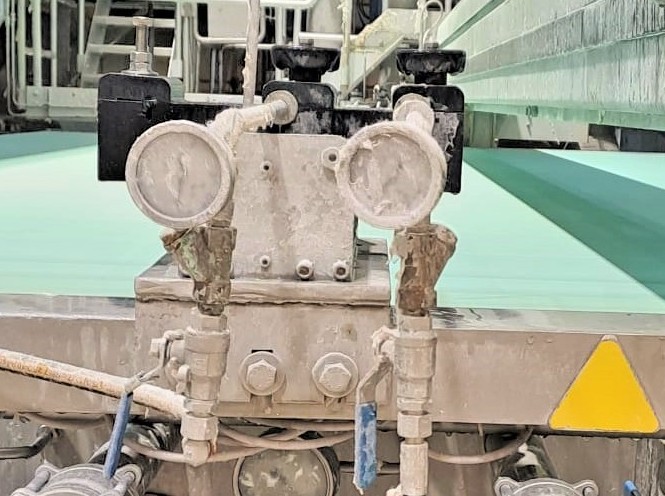

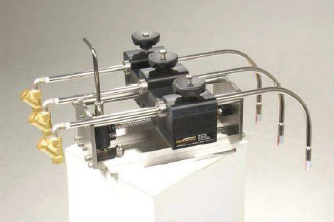

wet-end trimming machine from the world´s leading wet-end trim nozzle manufacturer Gatewood. Easy to install, unique and precise adjustments to the width of the paper, quick nozzle exchange during production.
whether you are winding or unwinding web-like materials. You can choose solutions for single or multiple reels, and for use with sensitive cores, from the diversity of this product group. We satisfy the most demanding loading requirements and allow optimum web speeds. The use of lightweight construction reduces the weight of the equipment and enables ergonomic handling, while standardization guarantees an excellent price/performance ratio.
our products can handle any reel, whether pneumatic, mechanical or combined pneumatic/mechanical. Our sophisticated engineering ensures first-class functionality. In addition, the compatibility with a wide range of different machine types and automated production processes makes the machines extremely versatile.
winding cores made of different materials and with different diameters call for a wide range of options. Ease of use, trouble-free operation and low maintenance are combined in our adapters. With low cost and reduced setup and downtime, you can accelerate and simplify your production and processing operations, reducing operating costs.
our handling systems offer significant benefits in terms of both mobility and efficiency. We ensure optimised processes in line with your individual requirements. Efficiency is increased by focusing on operational safety and ergonomics. With a convincing combination of technology and quality, our handling systems are highly versatile and easy to operate.
top quality inner wear parts (e.g. carbon seals, carbon guides, springs, nipples etc.) for almost all widely used rotary steam joint heads from Kadant Johnson, Voith, Valmet and others.
